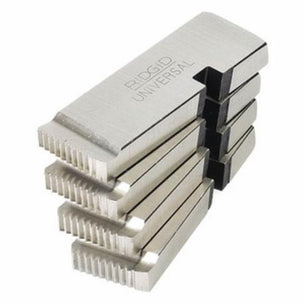

RIDGID 31822 1" to 2" High Speed Universal Die Head for Plastic Coated Pipe, Right Hand

RIDGID 31822 Specifications:

RIGID 31822 one to two inch NPT (Nominal Pipe Size) - 11 1/2 TPI (Threads Per Inch) High Speed Right Hand Cut Dies for Plastic Coated pipe are compatible in the Wheeler Rex 897065 Universal Die Head and the RIDGID 97065 Universal Die Head. The Die Heads can be mounted onto several different threading machines from either RIDGID or Wheeler Rex. The Dies in the head can be easily changed and if the Die Head is mounted to a machine the Die Head does not need to be removed from the machine for die changes. Dies have notches designed into them that will click into position inside the die head with its spring balls that catch the die and allow the operator to easily know when the dies are correctly installed in the Universal Die Head. And the die blades are designed with a two-step cut method which provides a very stable bite into the pipe, allowing any external coating to be removed as the pipe is cut at the same time. Dies from RIDGID are marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification. Dies are crafted from tool steel and designed for right hand cutting of threads.

Features:

• Used in Universal Die heads
• With 27 mm-wide profiling dies, the load is reduced, which makes it easy on the motor of a threading machine
• Dies can be changed without removing the die head from the machine
• Dies can be used in several different Die Heads from Wheeler Rex
• Full Lifetime Warranty
• 11 1/2 threads per inch
• High Speed
• For 1224 Threading Machine
• Dies are crafted from tool steel
• Marked for easy identification of the type of pipe and the sizes they are designed to cut for easy identification
• Two-step blade provides a stable bite allowing you to remove any external coating and cut the pipe at the same time
• Notches in the dies click into position against spring balls in the die head for easy confirmation the dies are installed correctly
• Designed for Plastic Coated Pipe
